Ethernet for Measurement Applications
Back in 1983, Ethernet was officially standardized by the Institute of Electrical and Electronics Engineers (IEEE). At its inception, it supported a maximum speed of 2.94 megabits per second, but it has undergone numerous updates over the years to accommodate higher bit rates, support for more nodes, diverse operating configurations, and longer distances. Today, Ethernet dominates the landscape of local area networks (LANs), originally designed for computers and data processing, it has since branched out into industrial automation, process monitoring, and instrumentation applications. The latest iterations of Ethernet support speeds up to 400 gigabits per second. However, since most instrumentation applications don’t produce massive amounts of data, they usually opt for 10BASE-T, 100BASE-TX (commonly referred to as Fast Ethernet), or 1000BASE-T (Gigabit Ethernet), which max out at 10 megabits, 100 megabits, or 1 gigabit per second, respectively. The "T" in these standards denotes transmission over twisted-pair cables. Nearly all Ethernet devices operate in full duplex, allowing simultaneous sending and receiving. Full-duplex Fast Ethernet uses two of the four twisted pairs in the Ethernet cable, whereas Gigabit Ethernet utilizes all four pairs. The standard cable sports an 8-pin RJ45 connector at each end, with a maximum length of 100 meters (328 feet). Unshielded twisted-pair (UTP) CAT 5e cable suffices for all three speeds, but CAT6 (or 6a), which exhibits less crosstalk, is recommended for 1000BASE-T. Ethernet switches direct messages to the intended device. An unmanaged switch might suffice for smaller networks. It negotiates the appropriate speed and duplex mode with each device without requiring any user configuration. Managed switches, on the other hand, provide more configurability, security features, and network maintenance tools, making them ideal for larger networks. A router combines the capabilities of a managed switch with internet access for all connected devices. It also serves to link a local area network (LAN) to a wide area network (WAN). Most Ethernet devices require a separate power connection from their data connection. To simplify installation and operation, smaller devices like remote sensors and indicators can use Power over Ethernet (PoE) from a managed switch to obtain up to 71 watts of low-voltage DC power through the same cable used for data transmission. The protocol is the common language that every device on the network uses to communicate. One popular Ethernet protocol is Modbus TCP, which transmits Modbus messages over TCP/IP networks. The Internet Protocol (IP) specifies the rules for addressing and routing data packets on the Internet. Once the data reaches its destination, the Transmission Control Protocol handles it. Many internet applications, including web browsing, email, and file transfer protocols, rely heavily on TCP, which prioritizes accurate data delivery over timely delivery. Here's a sample network for the test area in a facility. In this star configuration, each instrument has a full-duplex 100BASE-T connection to the managed switch. Remote sensors connect to, and are powered by, a separate switch close to the sensors. Interface to the corporate portion of the network occurs via Gbit fiber Ethernet. Controllers, recorders, power monitors, panel meters, and data acquisition systems are typical instruments offering Ethernet communication. Ethernet networks in harsh environments may require ruggedized switches with extended temperature ranges and enhanced transient protection. Sealed connectors resistant to dirt and moisture are often used instead of standard connectors. An overall foil shield (FTP) is sometimes specified on cabling for improved noise immunity. Ethernet cables with individually shielded twisted pairs are also available. Some instruments permit several identical devices to share a single Ethernet connection. In this diagram, the first Laurel panel meter has the Ethernet interface and serves as an RS-485 to Ethernet server for the other Laurel daisy-chained meters. Manufacturers of Ethernet-enabled instrumentation generally supply utility software to configure the unit for network operation. This typically involves setting the network address, entering other communication parameters, discovering nodes, naming, selecting the time zone, and inputting email addresses. Some products also allow this setup from the front panel. Modbus TCP/IP is usually sufficient for monitoring a process or extracting data stored in an instrument. Response times can reach 100 milliseconds or more. Applications demanding precise real-time control and tight timing between devices often use specialized industrial protocols like PROFINET RT, which provides lower latency than TCP/IP. Ethernet is a straightforward and cost-effective way to network instruments and share process or test data within a facility. Its IP capability allows access across physical and geographic barriers. Compared to Wi-Fi, Ethernet offers higher transmission reliability, superior noise immunity, faster speeds, and more consistent latencies. Linking Ethernet devices in production, testing, and engineering with the corporate enterprise facilitates data sharing and swifter decision-making. Web access to Ethernet instrumentation enables remote monitoring and management. As purchase, installation, and maintenance costs continue to decrease, Ethernet will become a feasible option for more test and measurement products. Contact Weschler Return Spiral Idler,Spiral Return Idlers,Spiral Idle Return Roller,Spiral Idler Return Rollers NINGBO TANSUO MACHINE MANUFACTURING CO., LTD. , https://www.tsjxidler.comEthernet Architecture

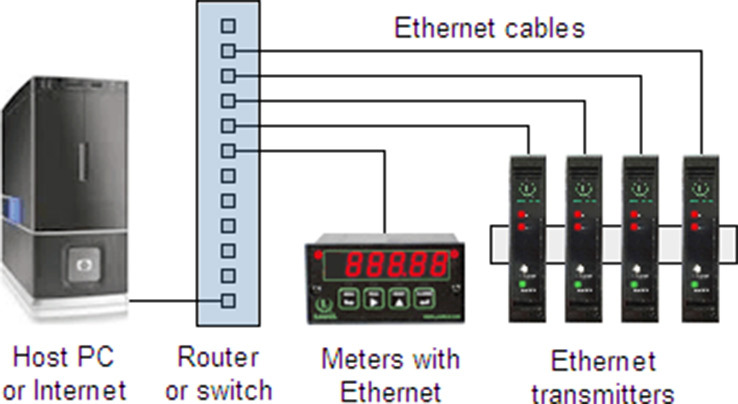

Ethernet is a wired (either copper or fiber) communication method that operates at significantly higher speeds than USB, RS-232, or RS-485. It functions as a packet-switched network with multiple access points (shared media) and no centralized control. Systems utilizing Ethernet break streams of data into frames. Each frame contains source and destination addresses, data packets, and error-checking mechanisms so that any damaged frames can be detected and retransmitted. Typically, an Ethernet network is configured in a star topology where every device connects to a switch or router. In this diagram of a simple network, five measuring instruments and one computer are connected to a 12-port Ethernet switch.

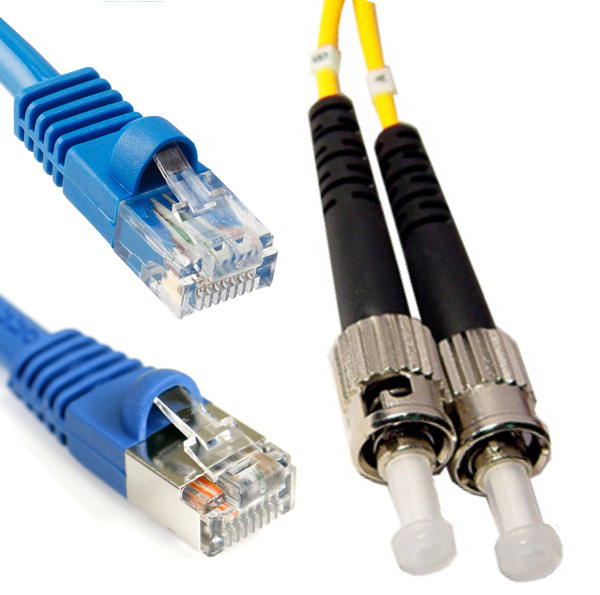

This image shows an RJ45 connector for copper Ethernet alongside a shielded version featuring a metallic shell. On the right side, there’s a pair of ST connectors (with plastic protective caps) for full-duplex fiber Ethernet. Fiber-based Ethernet implementations can cover much greater distances. They also provide electrical isolation and are resistant to electromagnetic interference. 100BASE-SX supports 100 megabits per second over 850nm fiber, while 100BASE-FX offers the same speed over 1300nm fiber. Comparable standards at 1 gigabit include 1000BASE-SX and 1000BASE-LX. Common connector types are ST, SC, and LC. Most gigabit fiber terminates at an SFP (Small-Format Pluggable) module located in the switch or device.Ethernet Protocol

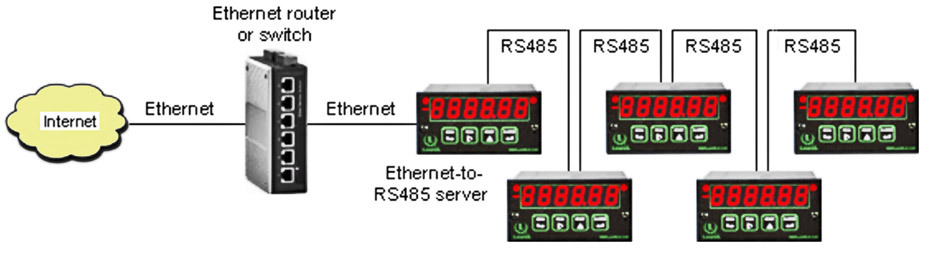

Measurement Applications

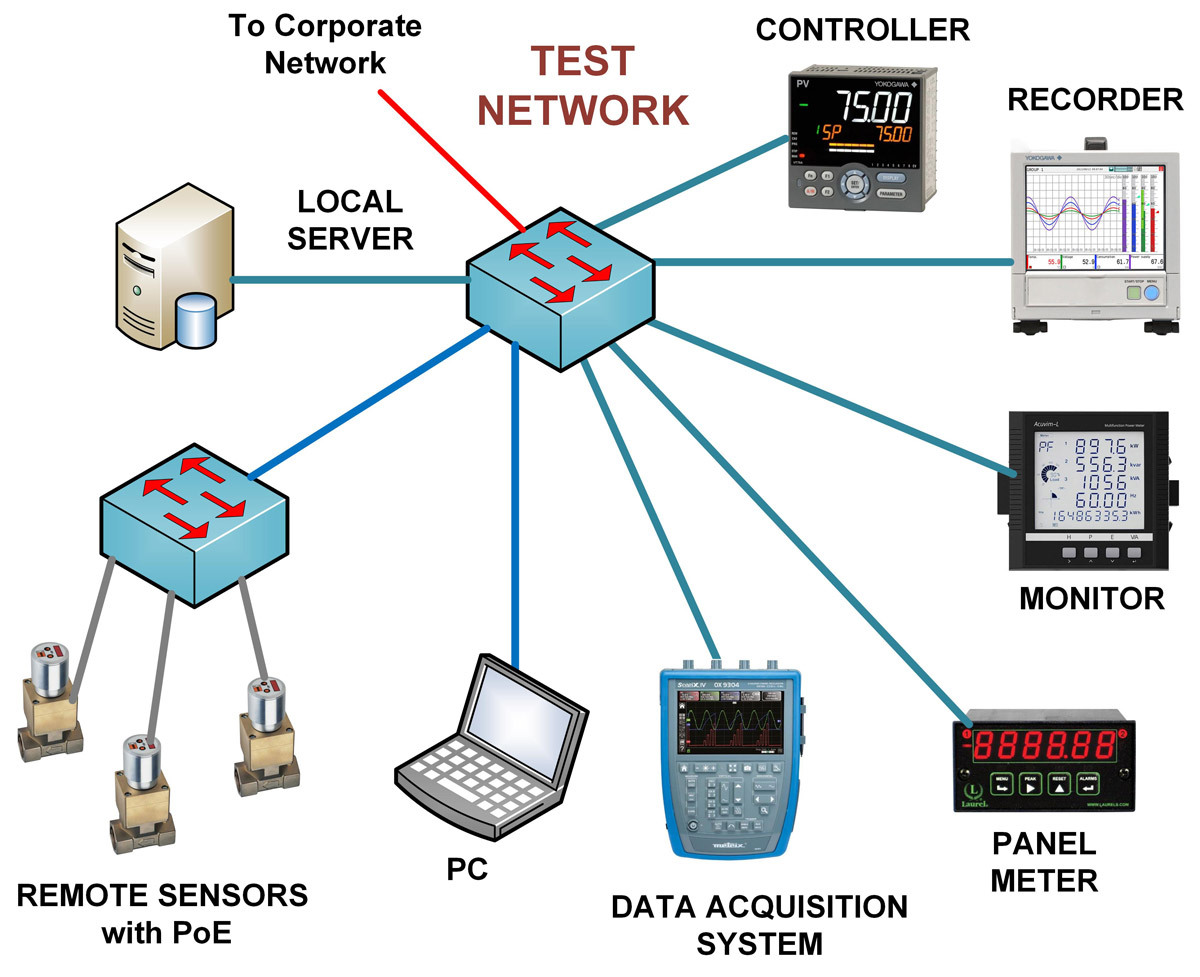

Modern industrial sites frequently employ Ethernet to connect PCs, PLCs, remote I/O modules, HMIs, smart instruments, motor drives, and other automation components.
